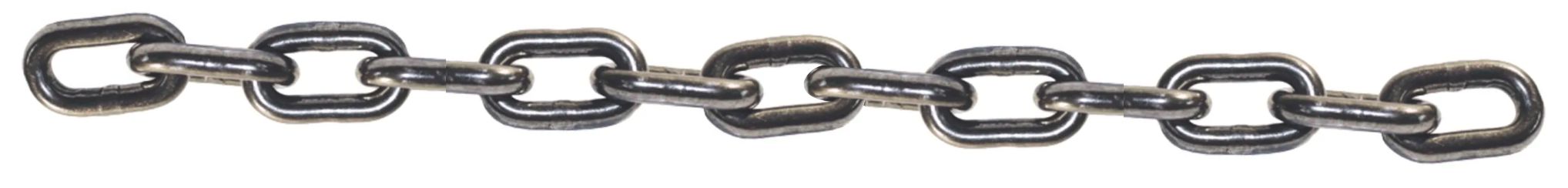

Scraper floor chain - 8x23 - D7
| Part-no. | 69-1-201 |
| Weight | 1.350 kg |
| Link per m | 44 |
| Diameter | 8 |
| Inner dimension | 23 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 8x24 - D7
| Part-no. | 69-1-202 |
| Weight | 1.360 kg |
| Link per m | 42 |
| Diameter | 8 |
| Inner dimension | 24 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 8x31 - D7
| Part-no. | 69-1-203 |
| Weight | 1.260 kg |
| Breaking load D7 | 71kN |
| Link per m | 33 |
| Diameter | 8 |
| Inner dimension | 31 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 9x27 - D7
| Part-no. | 69-1-204 |
| Weight | 1.760 kg |
| Link per m | 37 |
| Diameter | 9 |
| Inner dimension | 27 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 9x31 - D7
| Part-no. | 69-1-205 |
| Weight | 1.630 kg |
| Breaking load D7 | 90 kN |
| Link per m | 33 |
| Diameter | 9 |
| Inner dimension | 31 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 9x26,2 - D7
| Part-no. | 69-1-206 |
| Weight | 2.000 kg |
| Link per m | 38 |
| Diameter | 9 |
| Inner dimension | 26,2 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 9,5x27 - D7
| Part-no. | 69-1-207 |
| Weight | 1.960 kg |
| Link per m | 37 |
| Diameter | 9,5 |
| Inner dimension | 27 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 10x26,5 - D7
| Part-no. | 69-1-208 |
| Weight | 2.000 kg |
| Link per m | 38 |
| Diameter | 10 |
| Inner dimension | 26,5 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 10x28 - D7
| Part-no. | 69-1-209 |
| Weight | 2.170 kg |
| Link per m | 36 |
| Diameter | 10 |
| Inner dimension | 28 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 10x31 - D7
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 10x35 - D7
| Part-no. | 69-1-211 |
| Weight | 1.990 kg |
| Link per m | 29 |
| Diameter | 10 |
| Inner dimension | 35 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 11x31 - D7
| Part-no. | 69-1-213 |
| Weight | 2.600 kg |
| Breaking load D7 | 132kN |
| Link per m | 32 |
| Diameter | 11 |
| Inner dimension | 31 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 11x35 - D7
| Part-no. | 69-1-214 |
| Weight | 2.420 kg |
| Breaking load D7 | 132 kN |
| Link per m | 29 |
| Diameter | 11 |
| Inner dimension | 35 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 12x36 - D7
| Part-no. | 69-1-215.1 |
| Weight | 3.200 kg |
| Link per m | 28 |
| Diameter | 12 |
| Inner dimension | 36 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 12x42 - D7
| Part-no. | 69-1-216 |
| Weight | 2.910 kg |
| Link per m | 23 |
| Diameter | 12 |
| Inner dimension | 42 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 13x36 - D7
| Part-no. | 69-1-217 |
| Weight | 3.650 kg |
| Breaking load D7 | 190 kN |
| Link per m | 28 |
| Diameter | 13 |
| Inner dimension | 36 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 14x50 - D7
| Part-no. | 69-1-219 |
| Weight | 3.500 kg |
| Link per m | 20 |
| Diameter | 14 |
| Inner dimension | 50 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 10x38 - D7
| Part-no. | 69-1-220 |
| Weight | 2.050 kg |
| Breaking load D7 | 112kN |
| Link per m | 27 |
| Diameter | 10 |
| Inner dimension | 38 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 14x50 - D7
| Part-no. | 69-1-221 |
| Weight | 4.200 kg |
| Breaking load D7 | 205kN |
| Link per m | 20 |
| Diameter | 14 |
| Inner dimension | 50 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 13x45 - D7
| Part-no. | 69-1-224 |
| Weight | 4.100 kg |
| Breaking load D7 | 190kN |
| Link per m | 23 |
| Diameter | 13 |
| Inner dimension | 45 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper floor chain - 16x56 - D7
| Part-no. | 69-1-230 |
| Weight | 5.200 kg |
| Breaking load D7 | 280 kN |
| Link per m | 18 |
| Diameter | 16 |
| Inner dimension | 56 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
