Hydraulic top-links with hook and tie-rod
| Part-no. | 654-3-PHG-A1 |
| Weight | 27.000 kg |
| H | 51 |
| D | Ø25,4 |
| D1 | Ø60 |
| Category | III - II |
| Tractor performance | Max. 270 HP |
| L min. | 645 |
| L max. | 885 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 654-3-12 Dowel pin
- 1x 654-3-18 Tie-rod tractor-side
- 1x 654-3-19 Locknut M36x3
- 1x 654-3-79 Fixing-hook
- 1x 654-3-PHG-A4 Body for hydraulic top-link - Cat. III
Accessories
- 654-3-41 Flexible tubing 800 mm
- 654-3-42 Flexible tubing 1000 mm
- 654-3-43 Angle screw connection 3/8
- 654-3-52 Sealing kit for hydraulic top-links produced from 96 until today
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.

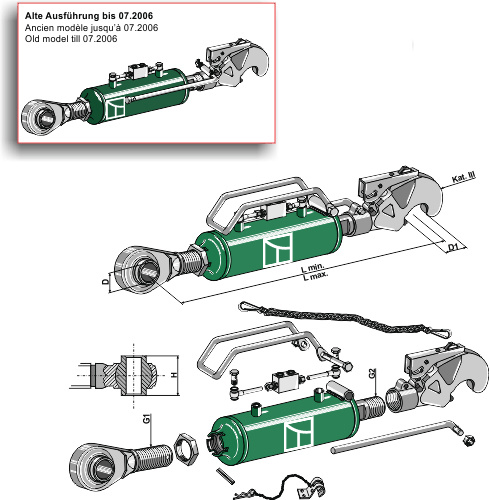

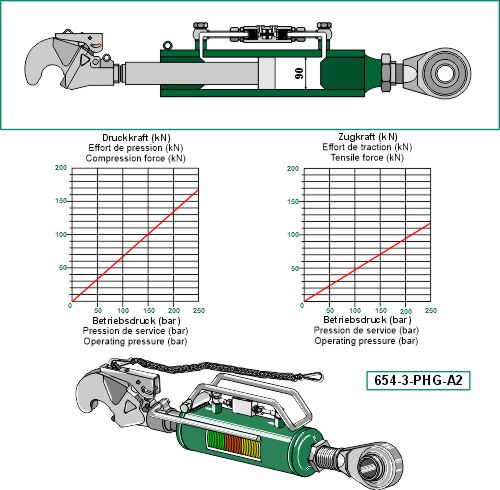

| Part-no. | 654-3-PHG-A2 |
| Weight | 27.000 kg |
| H | 51 |
| D | Ø32 |
| D1 | Ø60 |
| Category | III - III |
| Tractor performance | Max. 270 HP |
| L min. | 645 |
| L max. | 885 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 654-3-12 Dowel pin
- 1x 654-3-19 Locknut M36x3
- 1x 654-3-22 Tie-rod tractor-side
- 1x 654-3-79 Fixing-hook
- 1x 654-3-PHG-A4 Body for hydraulic top-link - Cat. III
Accessories
- 654-3-41 Flexible tubing 800 mm
- 654-3-42 Flexible tubing 1000 mm
- 654-3-43 Angle screw connection 3/8
- 654-3-52 Sealing kit for hydraulic top-links produced from 96 until today
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 654-3-PHG-A3 |
| Weight | 22.000 kg |
| H | 51 |
| D | Ø25,4 |
| D1 | Ø60 |
| Category | III - II |
| Tractor performance | Max. 270 HP |
| L min. | 545 |
| L max. | 685 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 654-3-12 Dowel pin
- 1x 654-3-18 Tie-rod tractor-side
- 1x 654-3-19 Locknut M36x3
- 1x 654-3-79 Fixing-hook
Accessories
- 654-3-41 Flexible tubing 800 mm
- 654-3-42 Flexible tubing 1000 mm
- 654-3-43 Angle screw connection 3/8
- 654-3-52 Sealing kit for hydraulic top-links produced from 96 until today
- 654-3-70 Indicator bar
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.

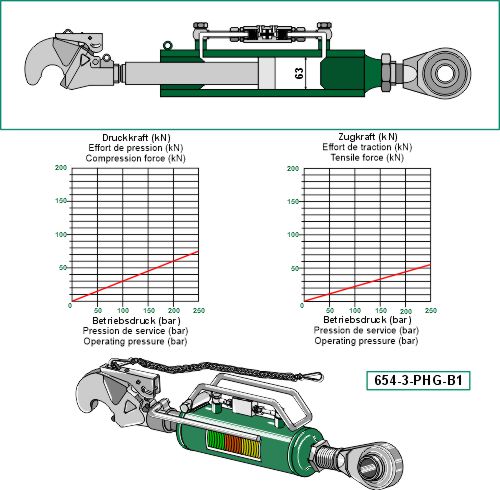

| Part-no. | 654-3-PHG-B1 |
| Weight | 15.000 kg |
| H | 51 |
| D | Ø25,4 |
| D1 | Ø50 |
| Category | II - II |
| Tractor performance | Max. 120 HP |
| L min. | 585 |
| L max. | 825 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 654-3-10 Tie-rod tractor-side
- 1x 654-3-11 Locknut M30x2
- 1x 654-3-12 Dowel pin
- 1x 654-3-79 Fixing-hook
Accessories
- 654-3-41 Flexible tubing 800 mm
- 654-3-42 Flexible tubing 1000 mm
- 654-3-43 Angle screw connection 3/8
- 654-3-51 Sealing kit for hydraulic top-links produced from 96 until today
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 654-3-PHG-B2 |
| Weight | 14.000 kg |
| H | 51 |
| D | Ø25,4 |
| D1 | Ø50 |
| Category | II - II |
| Tractor performance | Max. 120 HP |
| L min. | 515 |
| L max. | 685 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 654-3-10 Tie-rod tractor-side
- 1x 654-3-11 Locknut M30x2
- 1x 654-3-12 Dowel pin
- 1x 654-3-79 Fixing-hook
- 1x 654-3-81 Hydraulic top-link - Cat. II
Accessories
- 654-3-41 Flexible tubing 800 mm
- 654-3-42 Flexible tubing 1000 mm
- 654-3-43 Angle screw connection 3/8
- 654-3-51 Sealing kit for hydraulic top-links produced from 96 until today
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
The trade mark has been placed in our illustrations with the sole aim of protecting our illustrations as part of our intellectual property.
