Wearing plate
| Part-no. | 10.1045-3 |
| Weight | 2.340 kg |
| Length | 260 |
| Hole spacing | 45-50 |
| Width | 150 |
| Thickness | 8 |
| Hole | 13x20 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Crust breaker
| Part-no. | 10.1045-5 |
| Weight | 2.310 kg |
| Length | 275 |
| Hole spacing | 45-50 |
| Width | 125 |
| Thickness | 8 |
| Hole | 13x20 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Stubble share
| Part-no. | 101.42010 |
| Weight | 4.200 kg |
| Working width | 420 |
| Hole spacing | 45-75 |
| Notice | General informations |
| Thickness | 8 |
| Work angle | 15° |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Stubble share
| Part-no. | 101.48010 |
| Weight | 4.800 kg |
| Working width | 480 |
| Hole spacing | 45-75 |
| Notice | General informations |
| Thickness | 8 |
| Work angle | 15° |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Furrow breaker
| Part-no. | 101.5127 |
| Weight | 3.000 kg |
| Length | 330 |
| Hole spacing | 230 |
| Width | 60 |
| Hole | 12x20 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.

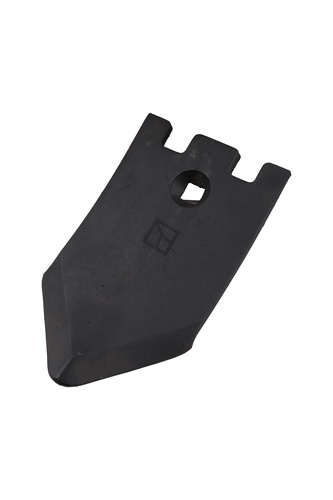

Point share
| Part-no. | 101.86030 |
| Weight | 1.700 kg |
| Length | 220 |
| Working width | 120 |
| Notice | General informations |
| Thickness | 10 |
| Hole | 14 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Guideboard
| Part-no. | 101.86032 |
| Weight | 2.260 kg |
| Notice | General informations |
| Thickness | 10 |
| Hole | 15x15 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Guideboard - right model
| Part-no. | 101.86033 |
| Weight | 2.420 kg |
| Notice | General informations |
| Thickness | 8 |
| Hole | 15x15 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.

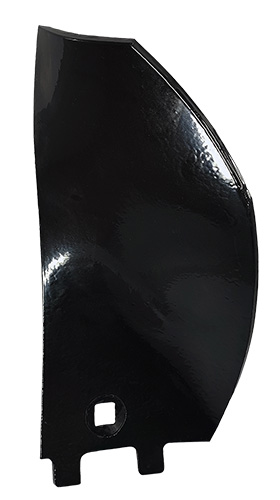

Guideboard - left model
| Part-no. | 101.86034 |
| Weight | 2.420 kg |
| Notice | General informations |
| Thickness | 8 |
| Hole | 15x15 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Point share
| Part-no. | 101.IND-1934 |
| Weight | 2.000 kg |
| Length | 220 |
| Working width | 120 |
| Thickness | 10 |
| Hole | 14 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Point
| Part-no. | 101.QVG-08 |
| Weight | 7.730 kg |
| Length | 490 |
| Working width | 80 |
| Thickness | 20 |
| Hole | 13x20 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
