Double coil springs
Double coil spring, right
| Part-no. | 101.304501 |
| Weight | 4.600 kg |
| Radius | 245 |
| Material dimensions | 20 x 20 |
| Underbeam clearance without share | 400 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.304511 |
| Weight | 4.600 kg |
| Radius | 245 |
| Material dimensions | 20 x 20 |
| Underbeam clearance without share | 400 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.304541 |
| Weight | 8.200 kg |
| Radius | 245 |
| Material dimensions | 25x25 |
| Underbeam clearance without share | 455 |
| Related parts |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.304551 |
| Weight | 8.200 kg |
| Radius | 245 |
| Material dimensions | 25x25 |
| Underbeam clearance without share | 455 |
| Related parts |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.304561 |
| Weight | 9.100 kg |
| Radius | 245±10 |
| Material dimensions | 25 x 25 |
| Underbeam clearance without share | 520 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.304571 |
| Weight | 9.100 kg |
| Radius | 245±10 |
| Material dimensions | 25 x 25 |
| Underbeam clearance without share | 520 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.304581 |
| Weight | 12.500 kg |
| Radius | 245 |
| Material dimensions | 30 x 30 |
| Underbeam clearance without share | 520, |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.304591 |
| Weight | 12.500 kg |
| Radius | 245 |
| Material dimensions | 30 x 30 |
| Underbeam clearance without share | 520 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.304601 |
| Weight | 13.560 kg |
| Radius | 240±10 |
| Material dimensions | 30 x 30 |
| Underbeam clearance without share | 605 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.304611 |
| Weight | 13.560 kg |
| Radius | 240±10 |
| Material dimensions | 30 x 30 |
| Underbeam clearance without share | 605 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.304641 |
| Weight | 20.500 kg |
| Radius | 245 |
| Material dimensions | 35 x 35 |
| Underbeam clearance without share | 670 |
Accessories
- 101.EXT-1125Narrow share - Hard metal
- 101.UNI-01All-purpose slurry injection pipe Ø58
- 30-101-30Stirrup bolt - M10x1,5
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.304648 |
| Weight | 20.500 kg |
| Radius | 245 |
| Material dimensions | 35 x 35 |
| Underbeam clearance without share | 660 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.304651 |
| Weight | 20.500 kg |
| Radius | 245 |
| Material dimensions | 35 x 35 |
| Underbeam clearance without share | 670 |
Accessories
- 101.EXT-1125Narrow share - Hard metal
- 101.UNI-01All-purpose slurry injection pipe Ø58
- 30-101-30Stirrup bolt - M10x1,5
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.304658 |
| Weight | 20.500 kg |
| Radius | 245 |
| Material dimensions | 35 x 35 |
| Underbeam clearance without share | 660 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.304661 |
| Weight | 30.500 kg |
| Radius | 245 |
| Material dimensions | 40 x 40 |
| Underbeam clearance without share | 680 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.304671 |
| Weight | 30.500 kg |
| Radius | 245 |
| Material dimensions | 40 x 40 |
| Underbeam clearance without share | 680 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.314701 |
| Weight | 29.700 kg |
| Radius | 245 |
| Material dimensions | 40x40 |
| Underbeam clearance without share | 640 |
Accessories
- 101.EXT-1124Narrow share - Hard metal
- 101.EXT-1125Narrow share - Hard metal
- 101.UNI-01All-purpose slurry injection pipe Ø58
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.314711 |
| Weight | 29.700 kg |
| Radius | 245 |
| Material dimensions | 40x40 |
| Underbeam clearance without share | 640 |
Accessories
- 101.EXT-1124Narrow share - Hard metal
- 101.EXT-1125Narrow share - Hard metal
- 101.UNI-01All-purpose slurry injection pipe Ø58
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.314861 |
| Weight | 24.240 kg |
| Radius | 300 |
| Material dimensions | 35 x 35 |
| Underbeam clearance without share | 660 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.314871 |
| Weight | 24.240 kg |
| Radius | 300 |
| Material dimensions | 35x35 |
| Underbeam clearance without share | 660 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, right
| Part-no. | 101.316161 |
| Weight | 31.600 kg |
| Radius | 300±10 |
| Material dimensions | 40 x 40 |
| Underbeam clearance without share | 680 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.316171 |
| Weight | 31.600 kg |
| Radius | 300±10 |
| Material dimensions | 40 x 40 |
| Underbeam clearance without share | 680 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.

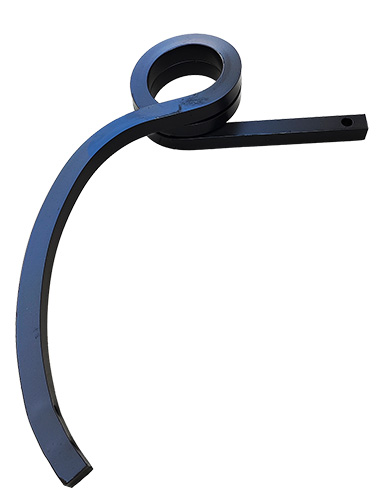

Double coil spring, right
| Part-no. | 101.324581 |
| Weight | 12.500 kg |
| Radius | 245 |
| Material dimensions | 30 x 30 |
| Underbeam clearance without share | 535 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring, left
| Part-no. | 101.324591 |
| Weight | 12.500 kg |
| Radius | 245 |
| Material dimensions | 30 x 30 |
| Underbeam clearance without share | 535 |
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring
| Part-no. | 101.8025 |
| Weight | 10.200 kg |
| Radius | 220 |
| Material dimensions | 25x25 |
| Underbeam clearance without share | 630 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring
| Part-no. | 101.8030 |
| Weight | 15.200 kg |
| Radius | 220 |
| Material dimensions | 30 x 30 |
| Underbeam clearance without share | 630 |
Accessories
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Double coil spring
| Part-no. | 101.8035 |
| Weight | 19.200 kg |
| Radius | 300 |
| Material dimensions | 35 x 35 |
| Underbeam clearance without share | 630 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
