Güttler Toothed roller-rings
Safety plate
| Part-no. | 2.011260 |
| Weight | 0.040 kg |
| Length | 86 |
| Width | 30 |
| Thickness | 2 |
| Hole | 13 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Safety plate
| Part-no. | 2.011261 |
| Weight | 0.130 kg |
| Length | 101 |
| Width | 35 |
| Thickness | 4 |
| Hole | 13 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Plate 45x8x25
| Part-no. | 2.011265 |
| Weight | 0.060 kg |
| Length | 45 |
| Width | 25 |
| Thickness | 8 |
| Hole | 10,5 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.

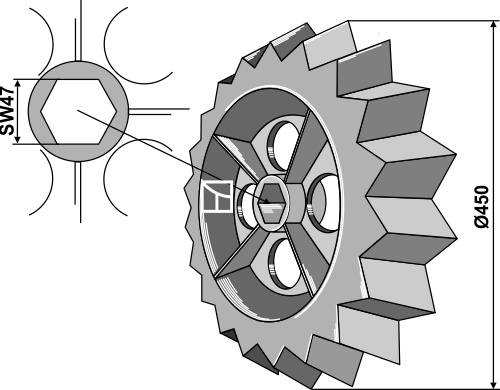

Toothed roller-ring - Ø450mm
| Part-no. | 316-522 |
| Weight | 12.200 kg |
| Material | GG25 (EN-GJL-250) - (EN-JL1040) |
| Working hubs | 72 |
| For shafts | Ø50 |
| Effective width | 53 |
| Diameter | 450 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø450mm
| Part-no. | 316-522.1 |
| Weight | 12.200 kg |
| Material | GGG50 (EN-GJS-500-7) |
| Working hubs | 72 |
| For shafts | Ø50 |
| Effective width | 53 |
| Diameter | 450 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø450mm
| Part-no. | 316-523 |
| Weight | 12.035 kg |
| Material | GG25 (EN-GJL-250) - (EN-JL1040) |
| Working hubs | 110 |
| For shafts | Ø50 |
| Effective width | 50 |
| Diameter | 450 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.

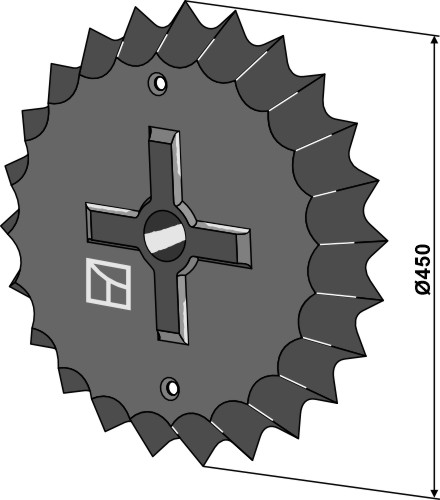

Toothed roller-ring - Ø450mm
| Part-no. | 316-523.1 |
| Weight | 13.300 kg |
| Material | GGG50 (EN-GJS-500-7) |
| Working hubs | 110 |
| For shafts | Ø50 |
| Effective width | 50 |
| Diameter | 450 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø450mm
| Part-no. | 316-524 |
| Weight | 14.300 kg |
| Material | GG25 (EN-GJL-250) - (EN-JL1040) |
| Working hubs | 65 |
| For shafts | Ø50 |
| Effective width | 50 |
| Diameter | 450 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø450mm
| Part-no. | 316-524.1 |
| Weight | 14.300 kg |
| Material | GGG50 (EN-GJS-500-7) |
| Working hubs | 65 |
| For shafts | Ø50 |
| Effective width | 50 |
| Diameter | 450 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø500mm
| Part-no. | 316-525 |
| Weight | 16.250 kg |
| Material | GG25 (EN-GJL-250) - (EN-JL1040) |
| Hole | 125 |
| Working hubs | 52 |
| Effective width | 50 |
| Diameter | 500 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø500mm
| Part-no. | 316-525.1 |
| Weight | 17.300 kg |
| Material | GGG50 (EN-GJS-500-7) |
| Hole | 125 |
| Working hubs | 52 |
| Effective width | 50 |
| Diameter | 500 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø450mm
| Part-no. | 316-527 |
| Weight | 13.300 kg |
| Material | GGG60 (EN-GJS-600-3) - (EN-JS1060) |
| Working hubs | 88 |
| Effective width | 53 |
| For square shaft | 45x45 |
| Diameter | 450 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø560mm
| Part-no. | 316-528 |
| Weight | 19.500 kg |
| Material | GGG60 (EN-GJS-600-3) - (EN-JS1060) |
| Working hubs | 110 |
| Effective width | 65 |
| For square shaft | 140x140 |
| Notice: | Divided execution |
| Diameter | 560 |
This set contains
- 2 x 164093310VHexagon bolt M16x2x4 without nut - Galvanized
- 2 x 165093310VHexagon bolt M16x2x50 without nut
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Calibration washer Ø90x6xØ51
| Part-no. | 316-534 |
| Weight | 0.200 kg |
| Thickness | 6 |
| Hole | 51 |
| Outside diameter | 90 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Calibration washer Ø90x3x41
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Calibration washer Ø90x4x41
| Part-no. | 316-536 |
| Weight | 0.150 kg |
| Thickness | 4 |
| Hole | 41x41 |
| Bolt diameter | 90 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Calibration washer Ø90x6x41
| Part-no. | 316-537 |
| Weight | 0.220 kg |
| Thickness | 6 |
| Hole | 41x41 |
| Outside diameter | 90 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Calibration washer Ø90x3x46
| Part-no. | 316-538 |
| Weight | 0.100 kg |
| Thickness | 3 |
| Hole | 46x46 |
| Outside diameter | 90 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø330mm
| Part-no. | 316-540 |
| Weight | 8.320 kg |
| Material | GGG50 (EN-GJS-500-7) - (EN-JS 1050) |
| Working hubs | 90 |
| Effective width | 39 |
| For square shaft | 40x40 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø330mm
| Part-no. | 316-541 |
| Weight | 6.800 kg |
| Material | GGG50 (EN-GJS-500-7) - (EN-JS 1050) |
| Working hubs | 40 |
| Effective width | 40 |
| For square shaft | 40x40 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø330mm
| Part-no. | 316-542 |
| Weight | 7.300 kg |
| Material | GGG50 (EN-GJS-500-7) - (EN-JS 1050) |
| Working hubs | 49 |
| Effective width | 39,5 |
| For square shaft | 40x40 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Toothed roller-ring - Ø380mm
| Part-no. | 316-543 |
| Weight | 8.665 kg |
| Material | GGG50 (EN-GJS-500-7) - (EN-JS 1050) |
| Hole | 140 |
| Working hubs | 40 |
| Effective width | 40 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Scraper
| Part-no. | 316-544 |
| Weight | 0.430 kg |
| Length | 380 |
| Hole spacing | 43-43 |
| Width | 40 |
| Thickness | 4 |
| Hole | 9,4 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Tooth-ring roller 1300mm
| Part-no. | 316-900 |
| Weight | 263.200 kg |
| Working width | 1300 |
| Assembly dimension | 1294 |
| Machine type | Güttler Mediana |
This set contains
- 2 x 10559318Hexagon bolt M10x1,5x55 without nut
- 1 x 31-40-37628Square shaft 40x40 - 1294mm
- 2 x 316-536Calibration washer Ø90x4x41
- 12 x 316-540Toothed roller-ring - Ø330mm
- 2 x 316-542Toothed roller-ring - Ø330mm
- 14 x 316-543Toothed roller-ring - Ø380mm
- 2 x 80-3013Self-locking nut - M10x1,5
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Tooth-ring roller 1500mm
| Part-no. | 316-901 |
| Weight | 301.100 kg |
| Working width | 1500 |
| Assembly dimension | 1472 |
| Machine type | Güttler Mediana |
This set contains
- 2 x 10559318Hexagon bolt M10x1,5x55 without nut
- 1 x 31-40-37629Square shaft 40x40 - 1472mm
- 2 x 316-536Calibration washer Ø90x4x41
- 14 x 316-540Toothed roller-ring - Ø330mm
- 2 x 316-542Toothed roller-ring - Ø330mm
- 16 x 316-543Toothed roller-ring - Ø380mm
- 2 x 80-3013Self-locking nut - M10x1,5
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Tooth-ring roller 1800mm
| Part-no. | 316-902 |
| Weight | 358.000 kg |
| Working width | 1800 |
| Assembly dimension | 1740 |
| Machine type | Güttler Mediana |
This set contains
- 2 x 10559318Hexagon bolt M10x1,5x55 without nut
- 1 x 31-40-37633Square shaft 40x40 - 1740mm
- 2 x 316-536Calibration washer Ø90x4x41
- 17 x 316-540Toothed roller-ring - Ø330mm
- 2 x 316-542Toothed roller-ring - Ø330mm
- 19 x 316-543Toothed roller-ring - Ø380mm
- 2 x 80-3013Self-locking nut - M10x1,5
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
