Discs for short cover-crops - NIAUX - Ø560
Razor Disc Ø560x5
| Part-no. | 31-004065 |
| Weight | 9.080 kg |
| No. waves | 32 |
| Pitch circle diameter | Ø98 |
| Thickness | 5 |
| Diameter | 560 |
| Concavity | 55 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Notched disc - Ø560x4
| Part-no. | 31-0589 |
| Weight | 7.900 kg |
| No. notches | 10 |
| Thickness | 4 |
| Diameter | 560 |
| Pitch circle diameter - 1 | Ø80 |
| Pitch circle diameter - 2 | Ø110 |
| Concavity | 70 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Notched disc - Ø560x5
| Part-no. | 31-0590 |
| Weight | 7.600 kg |
| No. notches | 10 |
| Thickness | 5 |
| Diameter | 560 |
| Pitch circle diameter - 1 | Ø80 |
| Pitch circle diameter - 2 | Ø110 |
| Concavity | 70 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Notched disc - Ø560x6
| Part-no. | 31-0628 |
| Weight | 10.400 kg |
| No. notches | 10 |
| Pitch circle diameter | Ø128 |
| Thickness | 6 |
| Diameter | 560 |
| Concavity | 70 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Notched disc - Ø560x6
| Part-no. | 31-0914 |
| Weight | 10.910 kg |
| No. notches | 10 |
| Pitch circle diameter | Ø98 |
| Thickness | 6 |
| Diameter | 560 |
| Concavity | 60 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Plain disc - Ø560x6
| Part-no. | 31-0915 |
| Weight | 11.760 kg |
| Pitch circle diameter | Ø98 |
| Thickness | 6 |
| Diameter | 560 |
| Concavity | 60 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.

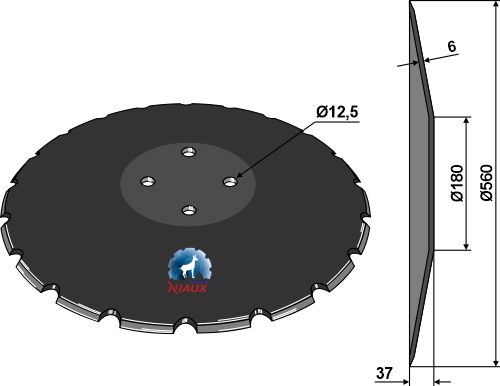

Concave disc Ø560x6 - notched
| Part-no. | 31-0924 |
| Weight | 11.200 kg |
| No. notches | 20 |
| Pitch circle diameter | Ø98 |
| Thickness | 6 |
| Diameter | 560 |
| Concavity | 37 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Notched disc - Ø560x6
| Part-no. | 31-0977 |
| Weight | 10.780 kg |
| No. notches | 10 |
| Pitch circle diameter | Ø98 |
| Thickness | 6 |
| Diameter | 560 |
| Concavity | 63 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Plain disc - Ø560x6
| Part-no. | 31-0978 |
| Weight | 11.940 kg |
| Pitch circle diameter | Ø98 |
| Thickness | 6 |
| Diameter | 560 |
| Concavity | 64 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Wavy disc Ø560x5
| Part-no. | 31-1028 |
| Weight | 9.200 kg |
| No. waves | 32 |
| Thickness | 5 |
| Diameter | 560 |
| Pitch circle diameter - 1 | Ø110 |
| Pitch circle diameter - 2 | Ø80 |
| Concavity | 62 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Plain disc - Ø560x5
| Part-no. | 31-122IM-R627 |
| Weight | 9.580 kg |
| Pitch circle diameter | Ø130 |
| Thickness | 5 |
| Diameter | 560 |
| Concavity | 60 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
