Stubble share 480mm
| Part-no. | 101.008268 |
| Weight | 4.250 kg |
| Working width | 480 |
| Hole spacing | 45-75 |
| Thickness | 8 |
| Work angle | 25° |
| Machine type | Kuhn Mixter 11T |
Accessories
- 101.IND-164Cultivator share 420mm
- 1470810Plough bolt DIN608 M14x2x70 and hexagon nut
- 30-MU14-3Self-locking nut - M14x2
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Point
| Part-no. | 101.015067 |
| Weight | 3.200 kg |
| Radius | 300 |
| Hole spacing | 45-75 |
| Thickness | 12 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Cultivator share 255mm
| Part-no. | 101.14023 |
| Weight | 0.700 kg |
| Radius | 235 |
| Length | 255 |
| Working width | 50 |
| Hole spacing | 60 |
| Thickness | 8 |
| Hole | 12,5 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Cultivator share Huard 255mm
| Part-no. | 101.15025 |
| Weight | 0.800 kg |
| Radius | 235 |
| Length | 255 |
| Working width | 50 |
| Hole spacing | 35 |
| Thickness | 8 |
| Hole | 10,5 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Replacement wing - Hard metal - left
| Part-no. | 101.EXT-1058 |
| Weight | 2.100 kg |
| Type | Hard metal |
| Hole spacing | 65 |
| Hole | 13 |
| For working width | 350 |
| Related parts | |
| Alternatives | Show |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Replacement wing - Hard metal - right
| Part-no. | 101.EXT-1059 |
| Weight | 2.100 kg |
| Type | Hard metal |
| Hole spacing | 65 |
| Hole | 13 |
| For working width | 350 |
| Related parts | |
| Alternatives | Show |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Share point - Hard metal
| Part-no. | 101.EXT-1172 |
| Weight | 2.200 kg |
| Radius | 300 |
| Length | 265 |
| Type | Hard metal |
| Working width | 34 |
| Hole | 12,5 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Sweep 200mm - Hard metal
| Part-no. | 101.EXT-1178 |
| Weight | 1.800 kg |
| Type | Hard metal |
| Working width | 200 |
| Hole | 12,5 |
| Alternatives | Show |
Accessories
- 12125AAluminium washer Ø24x2,5xØ13
- 1265810Plough bolt DIN608 M12x1,75x65 and hexagon nut
- 410-1005Washer Ø23,5x2,5xØ13
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Share point - Hard metal
| Part-no. | 101.EXT-1205 |
| Weight | 3.410 kg |
| Type | Hard metal |
| Working width | 56 |
| Hole spacing | 45 |
| Hole | 12,5 |
| Related parts |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Point - Hard metal
| Part-no. | 101.EXT-1212 |
| Weight | 2.620 kg |
| Length | 272 |
| Working width | 56 |
| Hole spacing | 45 |
| Hole | 12,5 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Cultivator share 420mm
| Part-no. | 101.IND-164 |
| Weight | 2.680 kg |
| Radius | 300 |
| Length | 420 |
| Working width | 90 |
| Hole spacing | 65-65 |
| Thickness | 10 |
| Hole | 14 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Sweep 200mm - DURAFACE
| Part-no. | 101.IND-2688.D |
| Weight | 1.100 kg |
| Type | DURAFACE |
| Working width | 200 |
| Thickness | 6 |
| Hole | 13 |
| Alternatives | Show |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Stubble share 235mm - left
| Part-no. | 101.IND-654L |
| Weight | 1.900 kg |
| Working width | 235 |
| Hole spacing | 65 |
| Thickness | 10 |
| Hole | 14 |
| Related parts | |
| Alternatives | Show |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Stubble share 235mm - right
| Part-no. | 101.IND-654R |
| Weight | 1.900 kg |
| Working width | 235 |
| Hole spacing | 65 |
| Thickness | 10 |
| Hole | 14 |
| Related parts | |
| Alternatives | Show |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Point
| Part-no. | 101.IND-655 |
| Weight | 1.730 kg |
| Length | 280 |
| Hole spacing | 45 |
| Width | 80 |
| Thickness | 12 |
| Hole | 13,5 |
| Related parts |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Guideboard - left
| Part-no. | 101.IND-656L |
| Weight | 1.890 kg |
| Length | 400 |
| Width | 80 |
| Thickness | 8 |
| Hole | 13,5 |
| Related parts |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Guideboard - right
| Part-no. | 101.IND-656R |
| Weight | 1.890 kg |
| Length | 400 |
| Width | 80 |
| Thickness | 8 |
| Hole | 13,5 |
| Related parts |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.

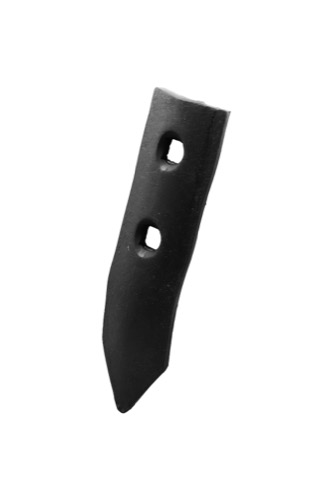

Share
| Part-no. | 101.IND-793 |
| Weight | 0.360 kg |
| Length | 170 |
| Hole spacing | 45 |
| Hole | 10,5 |
| Material dimensions | 45x7 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Cultivator share 405mm
| Part-no. | 101.KUH-33 |
| Weight | 2.600 kg |
| Radius | 300 |
| Length | 405 |
| Working width | 90 |
| Hole spacing | 70-70 |
| Thickness | 10 |
Accessories
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Stubble share 360mm
| Part-no. | 101.KUH-87 |
| Weight | 3.950 kg |
| Working width | 360 |
| Hole spacing | 45 |
| Thickness | 10 |
| Hole | 13 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
Stubble share
| Part-no. | IND-691 |
| Weight | 1.280 kg |
| Working width | 210 |
| Hole spacing | 60 |
| Thickness | 6 |
| Hole | 12,5 |
Part fitting for machine…
No original parts. Manufacturer's designations and original parts numbers are provided for comparison purposes only. The dimensions and weights are approximate and non-binding. Subject to technical changes.
