Doublet-Record - Cultivator parts
| Part-no. | 1.0413 |
| Weight | 3.000 kg |
| Material dimensions | 32x12 |
| Assembly clearance | 60 |
| Underbeam clearance without share | 365 |
| Total height incl. share | 575 |
| Underbeam clearance with share | 415 |
This set contains
Accessories
- 1.HH17-3405 Clamp for tine 32 x 12
- 1.HH17-3415 Clamp for tine 32 x 12
- 1.HH17-3005 Clamp for tine 32 x 12
- 1.HH17-3105 Clamp for tine 32 x 12
- 1.HH17-1001 Clamp for tine 32 x 12
- 1.HH17-3123 Clamp for tine 32 x 12
- 1.HH17-3015 Clamp for tine 32 x 12
- 1.HH17-3115 Clamp for tine 32 x 12
- 1.HH17-5053 Clamp for tine 32 x 12
- 1.10.131 Standard share K46
- 1.10.132 Standard share K45
- 1.10.131-6.1 Share
- 1.10.132-6 Standard share K45
- 1.KH1 Jointer
- 1.KH2 Jointer
- 1.KH3 Jointer
- 1.KH4 Jointer
- 1.KH5 Jointer
Holder
Share
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 042-2120 |
| Dal-Bo | 27481 |
| HE-VA | 0422120 |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.

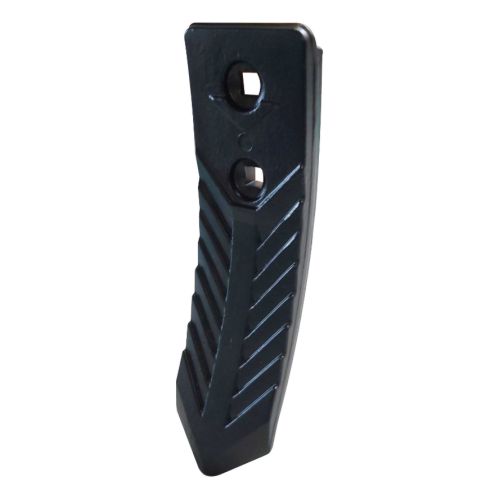

| Part-no. | 1.10.130B |
| Weight | 0.320 kg |
| Length | 190 |
| Working width | 35 |
| Thickness | 6 |
Accessories
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 042-2020 |
| Frost | 50241 |
| Kverneland | KW111099009 |
| Rau | 0055551 |
| Lemken | 3375476 |
| Pöttinger | 1210010 |
| Amazone / BBG |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 1.1148 |
| Weight | 2.710 kg |
| Material dimensions | 32 x 10 |
| Assembly clearance | 60 |
| Underbeam clearance without share | 370 |
| Total height without share | 525 |
| Total height incl. share | 570 |
This set contains
Accessories
- 1.HH17-3400 Clamp for tine 32 x 10
- 1.HH17-3401 Clamp for tine 32x10 - 32x12
- 1.HH17-3403 Clamp for tine 32 x 10
- 1.HH17-3413 Clamp for tine 32 x 10
- 1.HH17-3100 Clamp for tine 32 x 10
- 1.HH17 Clamp for tine 32 x 10
- 1.HH17-3101 Clamp for tine 32 x 10
- 1.HH17-15X50 Clamp for tine 32 x 10
- 1.HH17-3103 Clamp for tine 32x10 - 32x12
- 1.HH17-3121 Clamp for tine 32 x 10
- 1.HH17-50X30 Clamp for tine 32 x 10
- 1.HH17-1000 Clamp for tine 32 x 10
- 1.10159 Clamp for tine 32 x 10
- 1.HH17-3013 Clamp for tine 32 x 10
- 1.HH17-3113 Clamp for tine 32 x 10
Holder
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 042-2100 |
| Dal-Bo | 27480 |
| HE-VA | 0422100 |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 1.300611 |
| Weight | 4.610 kg |
| Height | 296 |
| Hole spacing | 60 |
| Hole | 12,5 |
| Material dimensions | 60 x 12 |
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 042-2500 |
| HE-VA |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 101.270 |
| Weight | 15.020 kg |
| Height | 160 |
| Hole spacing | 100 |
| Hole | 17 |
| Underbeam clearance without share | 615 |
| Total height without share | 775 |
This set contains
- 1x 101.1650 Bolt M16 x 50
- 1x 101.270-1 Spring - 150 x 10
- 1x 101.270-2 Lower part
- 1x 101.270-3 Connecting-cramp
- 1x 101.40.004-6 Share K32 - 6mm
- 2x 30.005 Cultivator bolt - M12x48 - 8.8
Accessories
- 101.EXT-1116 Sweep 260mm - Hard metal
- 101.UNI-01 All-purpose slurry injection pipe Ø58
- 30-101-29 Stirrup bolt - M10x1,5
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 042-2701 |
| HE-VA | 042-2701 |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 101.40.004-6 |
| Weight | 0.800 kg |
| Thickness | 6 |
| Radius | 250 |
| Working width | 65 |
| Hole spacing | 45 |
Accessories
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 05000580 |
| Kongskilde | 101155531 |
| HE-VA |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 101.40.004-8 |
| Weight | 1.000 kg |
| Thickness | 8 |
| Radius | 250 |
| Working width | 65 |
| Hole spacing | 45 |
Accessories
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 05000581 |
| Kongskilde | 101155533 |
| HE-VA |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 101.40.005-6 |
| Weight | 1.200 kg |
| Thickness | 6 |
| Radius | 250 |
| Working width | 110 |
| Hole spacing | 45 |
Accessories
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 05000578 |
| Kongskilde | 101155535 |
| HE-VA |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 101.40.005-8 |
| Weight | 1.600 kg |
| Thickness | 8 |
| Radius | 250 |
| Working width | 110 |
| Hole spacing | 45 |
Accessories
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 05000579 |
| Kongskilde | 101155537 |
| HE-VA |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 101.486 |
| Weight | 0.800 kg |
| Thickness | 6 |
| Radius | 300 |
| Working width | 140 |
| Hole spacing | 45 |
Accessories
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 05000486 |
| Kongskilde | 101155539 |
| HE-VA |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 101.487 |
| Weight | 1.380 kg |
| Thickness | 6 |
| Radius | 300 |
| Working width | 260 |
| Hole spacing | 45 |
| Alternatives | Show |
Accessories
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 05000487 |
| Kongskilde | 101155541 |
| HE-VA |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 101.542 |
| Weight | 1.865 kg |
| Thickness | 8 |
| Radius | 300 |
| Working width | 260 |
| Hole spacing | 45 |
Accessories
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 101155542 |
| Kongskilde | 101155542 |
| HE-VA |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 2.J62 |
| Weight | 1.520 kg |
| Assembly clearance | 30 |
| Total height incl. share | 320 |
| Underbeam clearance with share | 234 |
This set contains
- 1x 10509318 Hexagon bolt M10 without nut
- 1x 2.J62-1 Share
- 1x 2.J62-2 Upper part
- 1x 2.J62-3 Clamp
- 1x 30-MU10-2 Self-locking nut M10
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|---|
| Doublet-Record | 101032010 |
| HE-VA |
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
The trade mark has been placed in our illustrations with the sole aim of protecting our illustrations as part of our intellectual property.
