Top-links Category I

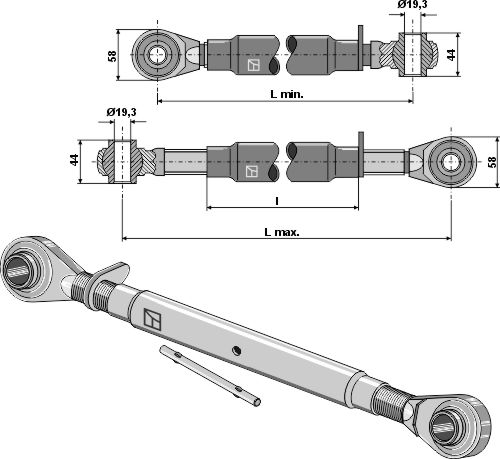

| Part-no. | 65-206E |
| Weight | 3.850 kg |
| Thread | M30x3,5 |
| Category | I |
| Ball end width | 58 |
| Ball end height | 44 |
| Length max. ±20mm | 580 |
| Length min. ±20mm | 420 |
| Top-link tube length | 300 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 65-4 Locknut - standard
- 1x 656-143E Tie-rods M30x3,5
- 1x 656-243E Tie-rods M30x3,5
- 1x 657-406E Tube M30x3,5
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 65-207E |
| Weight | 4.050 kg |
| Thread | M30x3,5 |
| Category | I |
| Ball end width | 58 |
| Ball end height | 44 |
| Length max. ±20mm | 600 |
| Length min. ±20mm | 440 |
| Top-link tube length | 320 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 65-4 Locknut - standard
- 1x 656-143E Tie-rods M30x3,5
- 1x 656-243E Tie-rods M30x3,5
- 1x 657-434E Tube M30x3,5
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 65-208E |
| Weight | 4.900 kg |
| Thread | M30x3,5 |
| Category | I |
| Ball end width | 58 |
| Ball end height | 44 |
| Length max. ±20mm | 650 |
| Length min. ±20mm | 490 |
| Top-link tube length | 370 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 65-4 Locknut - standard
- 1x 656-143E Tie-rods M30x3,5
- 1x 656-243E Tie-rods M30x3,5
- 1x 657-408E Tube M30x3,5
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 65-209E |
| Weight | 4.600 kg |
| Thread | M30x3,5 |
| Category | I |
| Ball end width | 58 |
| Ball end height | 44 |
| Length max. ±20mm | 760 |
| Length min. ±20mm | 510 |
| Top-link tube length | 400 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 65-4 Locknut - standard
- 1x 656-143E Tie-rods M30x3,5
- 1x 656-243E Tie-rods M30x3,5
- 1x 657-409E Tube M30x3,5
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 65-210E |
| Weight | 4.875 kg |
| Thread | M30x3,5 |
| Category | I |
| Ball end width | 58 |
| Ball end height | 44 |
| Length max. ±20mm | 730 |
| Length min. ±20mm | 570 |
| Top-link tube length | 450 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 65-4 Locknut - standard
- 1x 656-143E Tie-rods M30x3,5
- 1x 656-243E Tie-rods M30x3,5
- 1x 657-432E Tube M30x3,5
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
| Part-no. | 65-212E |
| Weight | 5.100 kg |
| Thread | M30x3,5 |
| Category | I |
| Ball end width | 58 |
| Ball end height | 44 |
| Length max. ±20mm | 780 |
| Length min. ±20mm | 620 |
| Top-link tube length | 500 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 65-4 Locknut - standard
- 1x 656-143E Tie-rods M30x3,5
- 1x 656-243E Tie-rods M30x3,5
- 1x 657-412E Tube M30x3,5
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
The trade mark has been placed in our illustrations with the sole aim of protecting our illustrations as part of our intellectual property.
| Part-no. | 65-206 |
| Weight | 4.150 kg |
| Thread | M30x3,5 |
| Category | I |
| Ball end width | 62 |
| Ball end height | 44 |
| Length max. ±20mm | 590 |
| Length min. ±20mm | 410 |
| Top-link tube length | 300 |
| Brand | Industriehof Scherenbostel GmbH Im Winkel 5 D-30900 Wedermark www.industriehof.com - productinfo@industriehof.com |
This set contains
- 1x 65-4 Locknut - standard
- 1x 656-142 Hardened tie-rod for top-link M30x3,5
- 1x 656-242 Hardened tie-rod for top-link M30x3,5
- 1x 657-406 Tube M30x3,5
Part fitting for machine…
| Adaptable for | Orig.part n° |
|---|
IHOF spare parts are non-genuine parts. All references to original brand descriptions and part numbers are made only for the sake of comparison.
The unauthorized use of the drawings depicted,
constitutes an infringement of copyright and will be prosecuted by us.
Technical dimensions are subject to change without prior notice.
Weights and measurements are approximate and unbinding.
The trade mark has been placed in our illustrations with the sole aim of protecting our illustrations as part of our intellectual property.
